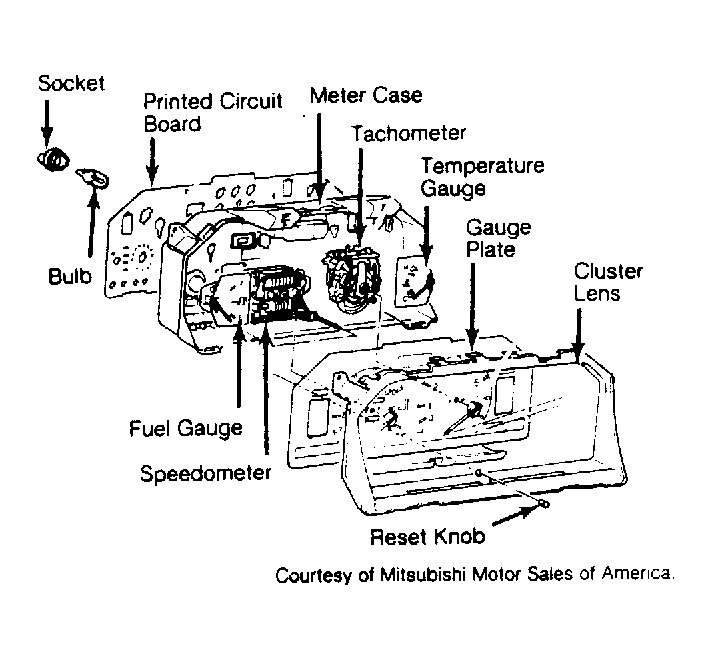

Instrument Cluster: Van/Wagon
- Disconnect negative battery cable. Remove inspection lid. Disconnect cluster switch connectors and remove light switch panel. Remove cluster hood mounting screws and cluster hood.
- Disconnect speedometer cable. Disconnect cluster harness from cluster case. Remove instrument cluster. To install, reverse removal procedure.
