Instrument Cluster: Pickup

  1. Disconnect negative battery ground cable. Remove heater fan switch knob, heater control knobs and radio knobs. Remove instrument cluster bezel. Remove mounting screws from 4 corners of cluster. SeeFig 1 .
  2. Disconnect speedometer cable and connectors from back of cluster. Remove cluster assembly. To install, reverse removal procedure.

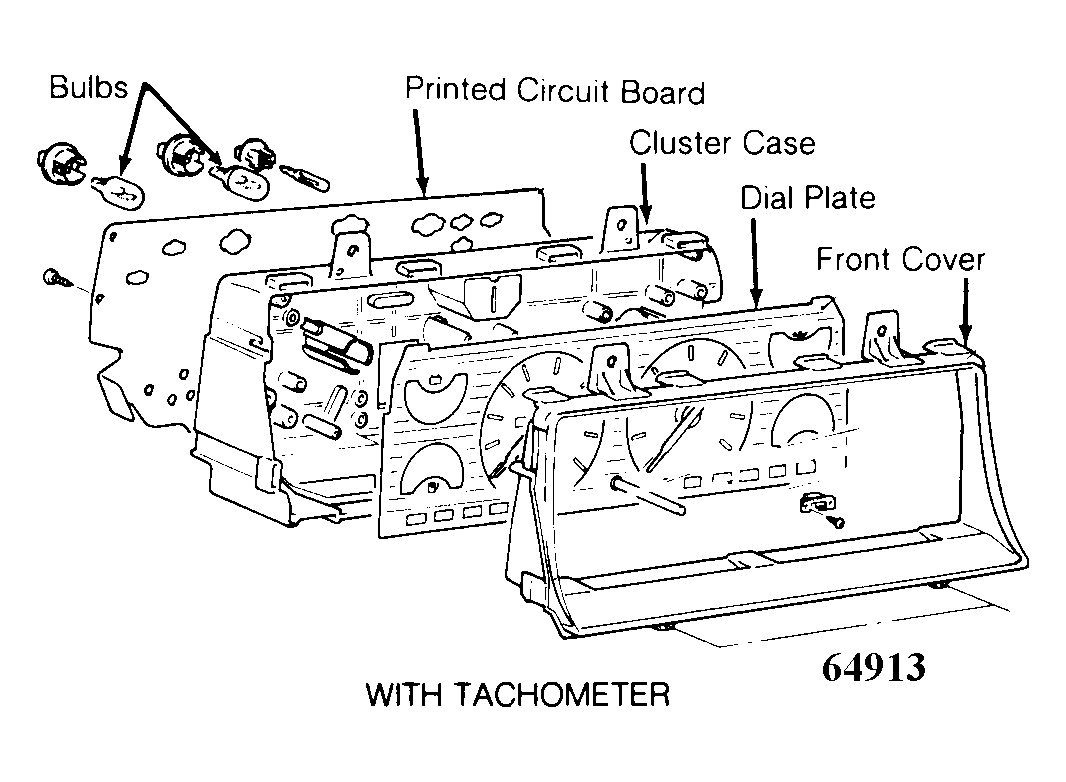

Fig 1: Exploded View of Pickup Instrument Panel
G64913Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
