Instrument Cluster: Montero

  1. Remove instrument cluster cover. Remove screws from bottom of instrument cluster. Remove bolt from upper part of cluster. SeeFig 1 .
  2. Disconnect speedometer cable from back of instrument cluster by pushing stopper of plug on speedometer cable side of connection. Pull cluster out part way. Disconnect all connectors attaching cluster. Remove cluster. To install, reverse removal procedure.

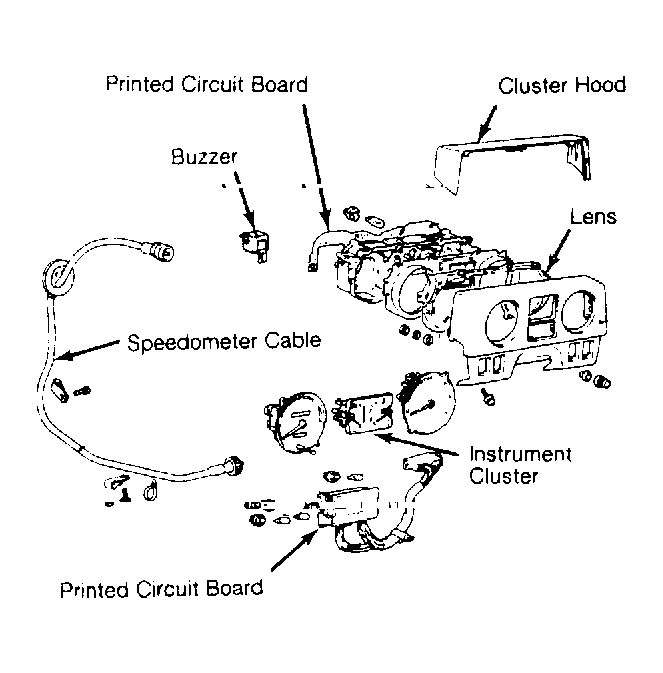

Fig 1: Exploded View of Montero Instrument Panel
G64914Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
