Instrument Cluster: Mirage

  1. Remove instrument cluster hood mounting screws and hood. Remove cluster assembly mounting screws. Remove speedometer cable and odometer knob. Remove instrument cluster glass. Remove speedometer and lens. Remove grommet. SeeFig 1 .
  2. Remove bulb sockets with bulbs. Remove printed circuit board. Remove fuel and water temperature gauges (bi-metal type). Remove tachometer. Remove water, fuel and pressure gauges (cross-coil type). Remove instrument cluster case. To install, reverse removal procedure.

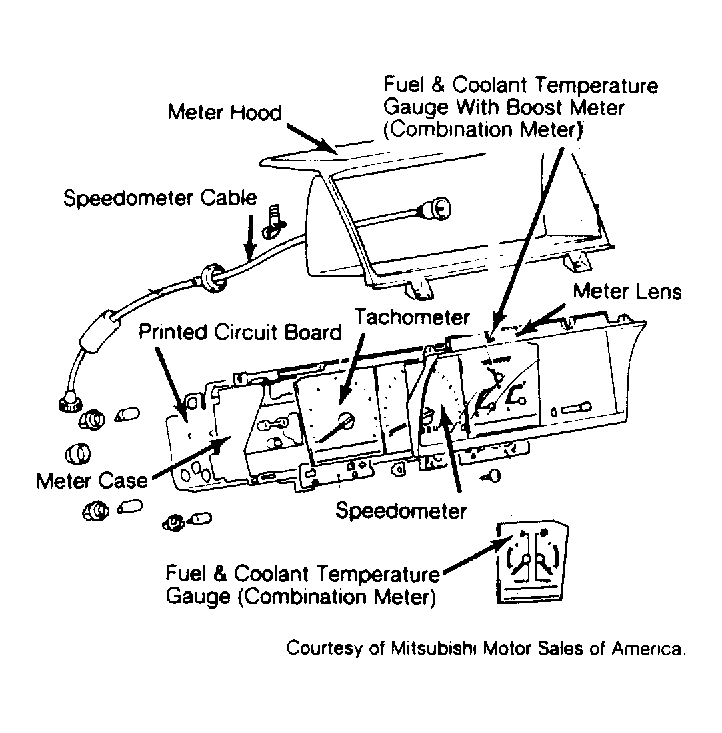

Fig 1: Exploded View of Mirage Instrument Panel
G64912Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
