Rocker Shaft Assembly & Camshaft: Installation

  1. Lubricate camshaft journals and lobes. Install camshaft. Determine correct rocker arm cylinder identification and assemble rocker shaft assembly. See Fig 1.

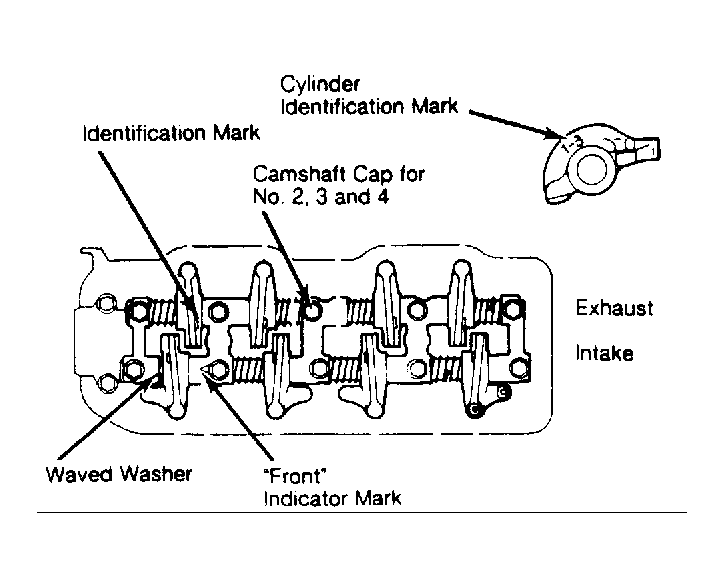

    Fig 1: Assembling Rocker Shaft Numbers on rocker arm indicate cylinder application.
    G82063Courtesy of CHRYSLER LLC
  2. Install rocker shafts into front cap with shaft oil holes down and tabs in bearing cap located in grooves in rocker shafts. Install rocker shaft bolts and gradually tighten to specification.
  3. Install camshaft sprocket and timing belt. Ensure timing mark alignment and belt tension are correct. Reverse removal procedure to complete installation.
  4. Adjust valves to specification. See VALVE CLEARANCE SPECIFICATIONS  table. Apply sealant to top surface of cylinder block, above semi-circular packing at rear of head, and install valve cover.
