Front Disc Brake Pads (CORDIA, GALANT, Mirage & TREDIA): Installation

Press piston to bottom of bore. Install retaining clips, pad assembly, inner shim(s) and anti-squeak shim onto support mounting. See Fig 1 . Lower caliper body and install lock pin.

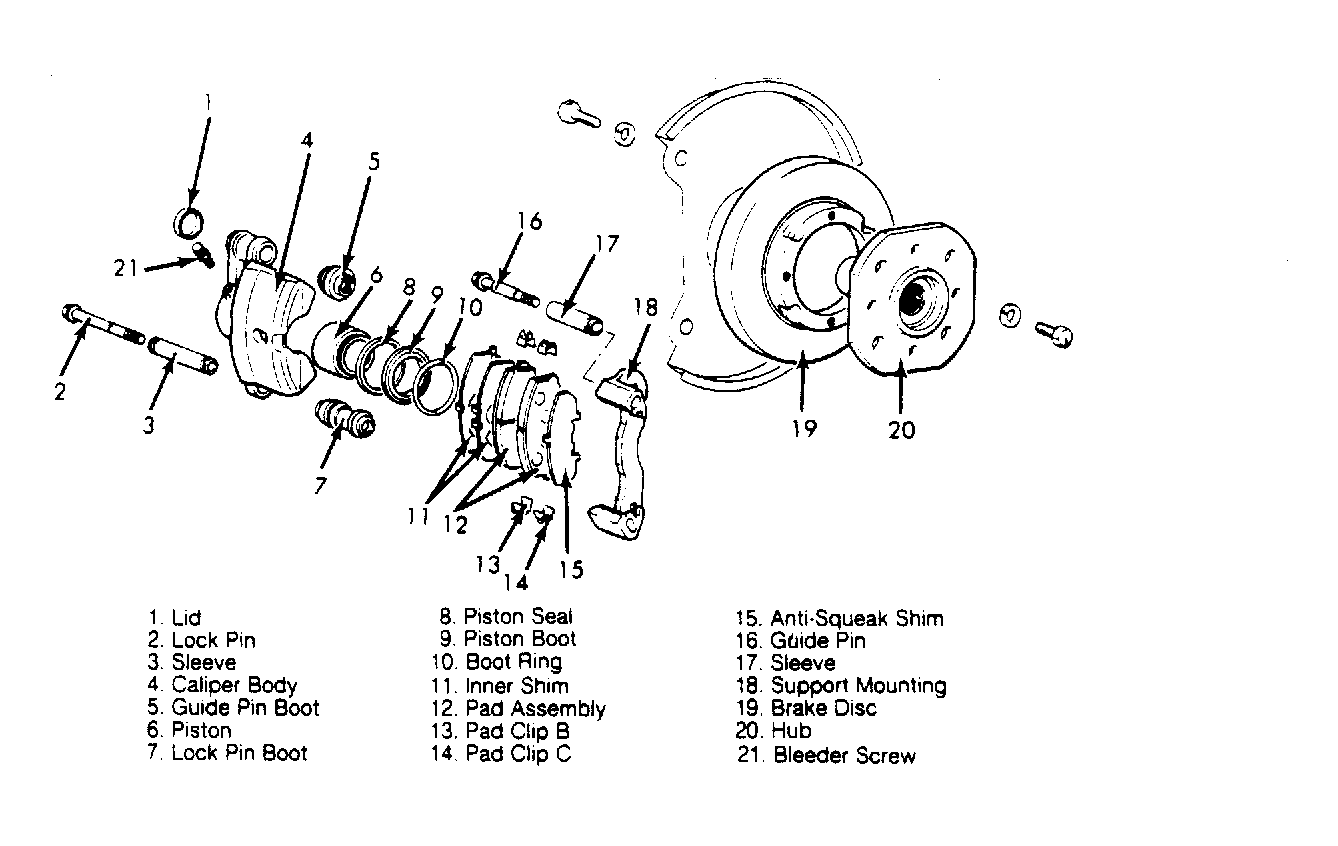

Fig 1: Exploded View of Cordia, Mirage & Tredia Disc Brake (Type AD54)
