Installation (All Models)

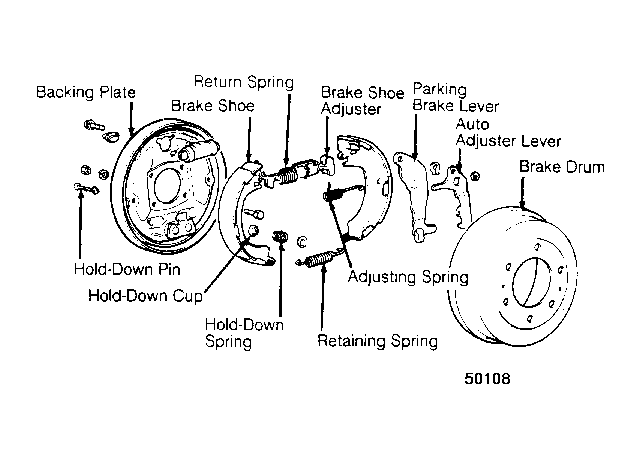

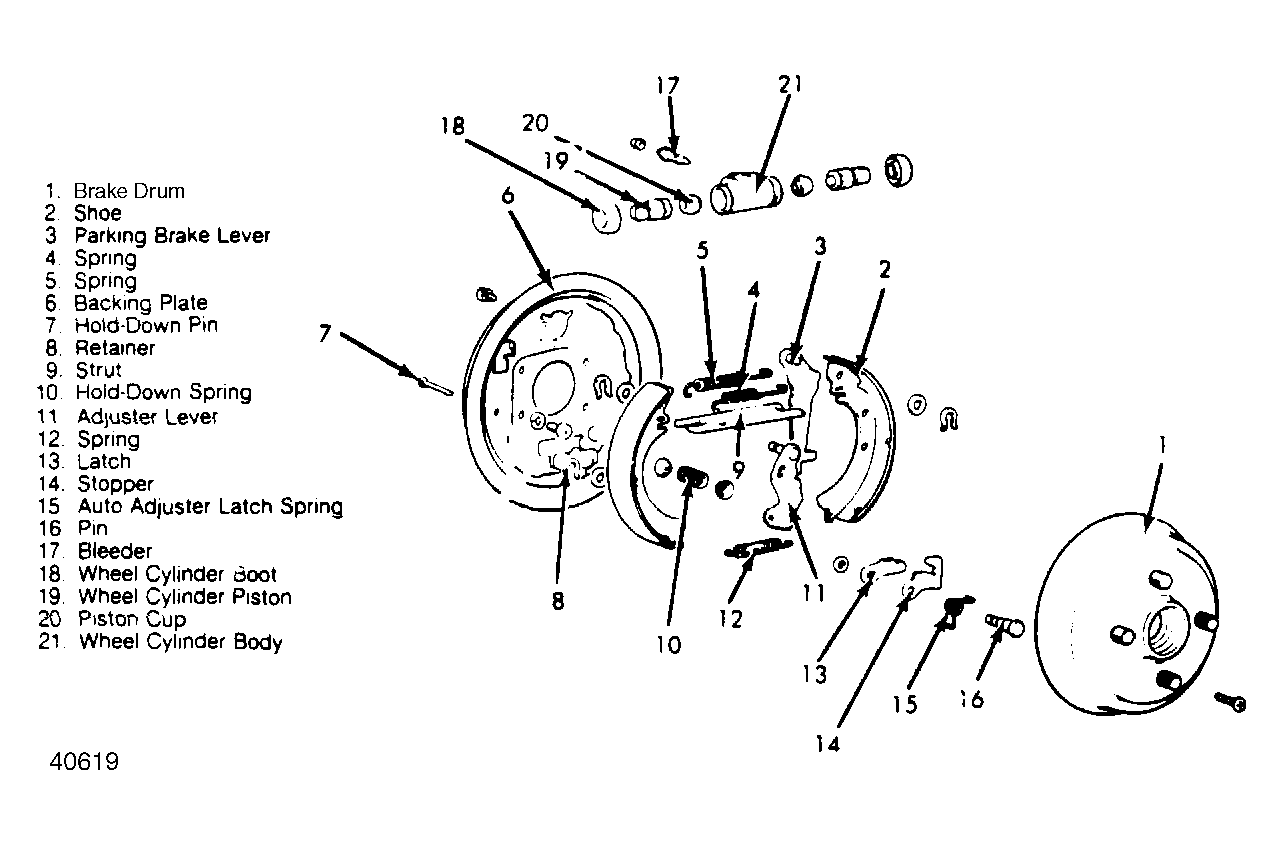

- To install, reverse removal procedure. Apply Lubriplate to all shoe contact points, adjuster assembly, wheel cylinder and parking brake lever pin.
- Set adjustment lever all the way back. After assembling the brake shoes, install brake drum. Depress brake pedal to adjust shoe clearance. Adjust parking brake.
- Pickup require check of adjuster after installation is complete. Adjuster lever should mesh with next tooth of adjuster when pulled, and return to original position after wheel has moved one tooth. Adjuster assemblies differ between right and left sides.
