Power Brake Unit: Removal

Remove the brake master cylinder, and disconnect vacuum hose from power brake unit. Disconnect brake pedal and operating rod of power brake unit. From inside vehicle, remove 4 nuts attaching power brake unit to firewall. Remove power brake unit.

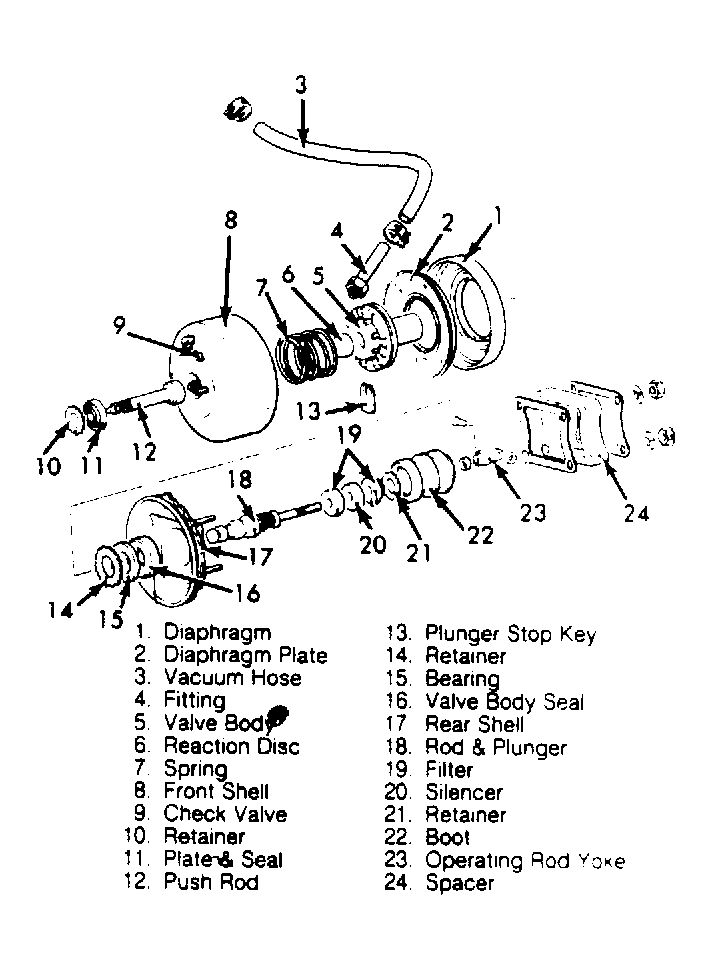

Fig 1: Exploded View of Power Brake Unit Unit for Cordia, Galant, Montero and Tredia is shown.
