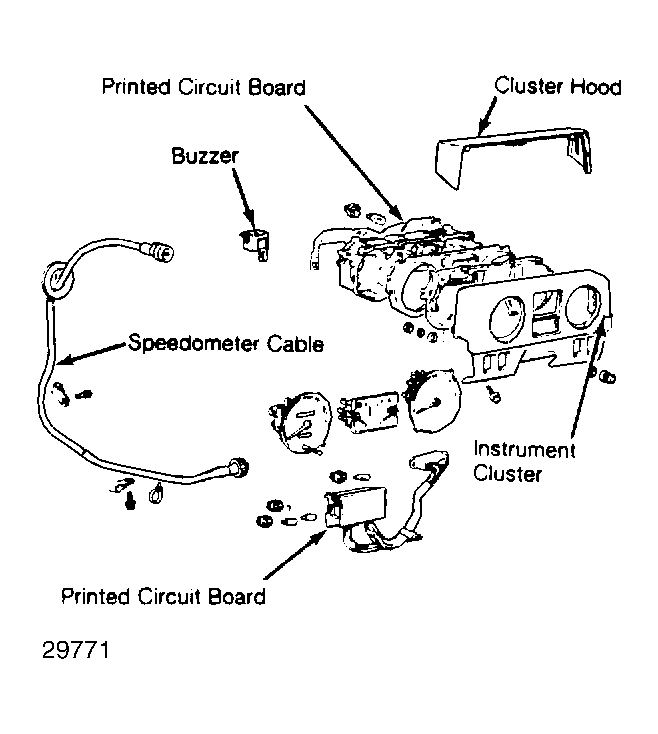

Instrument Cluster: Montero
- Remove instrument cluster cover. Remove screws from bottom of instrument cluster. Remove bolt from upper part of cluster.
- Disconnect speedometer cable from back of instrument cluster by pushing stopper of plug on speedometer cable side of connection.
- Pull cluster out part way. Disconnect all connectors attaching cluster. Remove cluster. To install, reverse removal procedure.
