61 35 954 Removing and installing/replacing interior antenna for Comfort Access (rear seat)

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove REAR SEAT

Removal:

Disconnect connector (1).

Release detents on holder.

Remove interior antenna for Comfort Access (2) from holder.

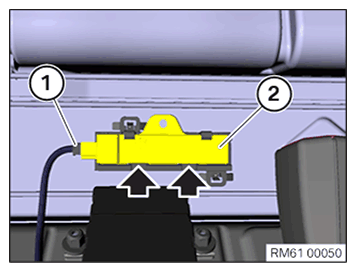

Fig 1: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join interior antenna for Comfort Access (2) in holder.

Connect the connector (1).

Installation note:

Ensure interior antenna for Comfort Access (2) engages correctly on holder.

Fig 2: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.
