Installing headlight repair kit (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work needed:
- Remove left and/or right. HEADLIGHT or HEADLIGHT - LED TECHNOLOGY .
NOTE:

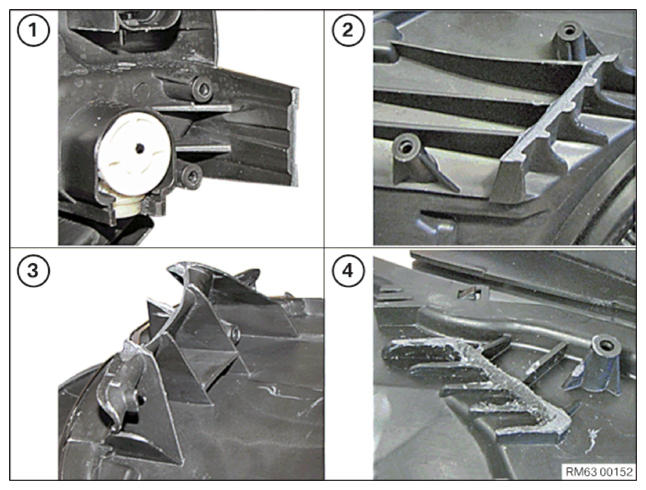

Damaged holders (1, 2, 3, 4) can be replaced with the repair kit.
Replacement of headlight is not required!
Holders from the repair kit are marked with an "L" for the left or "R" for the right side.
Replacement of headlight is not required!
Holders from the repair kit are marked with an "L" for the left or "R" for the right side.
Remove damaged holders (1, 2, 3, 4) as shown above.
Mount holder from repair kit (1, 2, 3, 4) as illustrated and tighten using the enclosed screws.
After the repair:
- Install left and/or right HEADLIGHT or HEADLIGHT - LED TECHNOLOGY .
- Adjust HEADLIGHTS
