Gap Dimensions, Body (Cooper Clubman F54)
NOTE:
The dimensions specified in this repair information are applicable at an object temperature of 20°C. The aim of adjustment is to achieve a uniform gap.
Symmetry of the gaps between left and right sides of the vehicle has top priority.
For door gaps, the maximum deviation between the front and rear door gaps must be 1.0 mm.
Adjust headlight and tail light with constant allround gap (visually).
No gap dimension are specified for components which cannot be adjusted.
Symmetry of the gaps between left and right sides of the vehicle has top priority.
For door gaps, the maximum deviation between the front and rear door gaps must be 1.0 mm.
Adjust headlight and tail light with constant allround gap (visually).
No gap dimension are specified for components which cannot be adjusted.

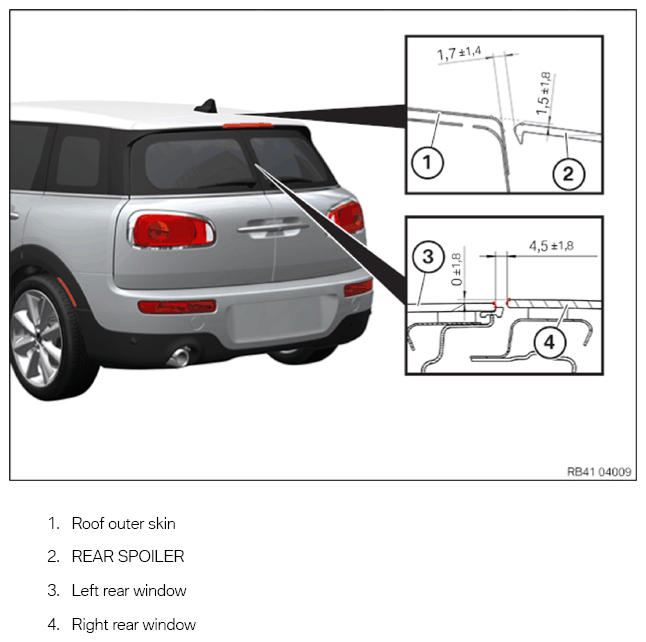

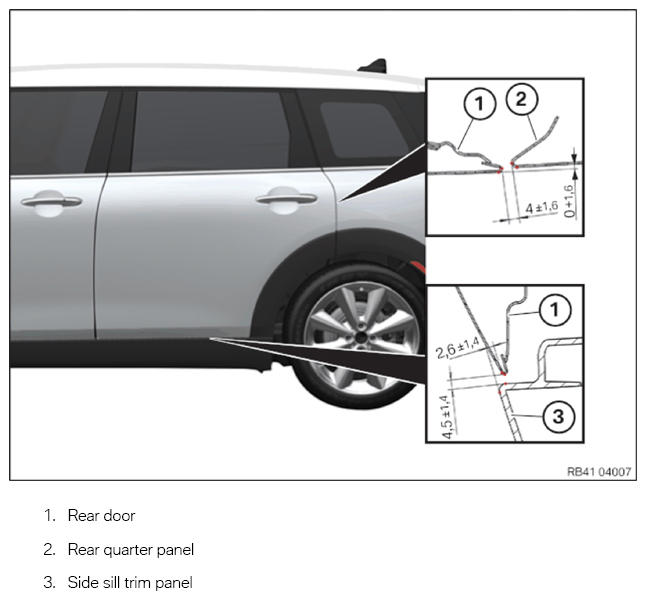

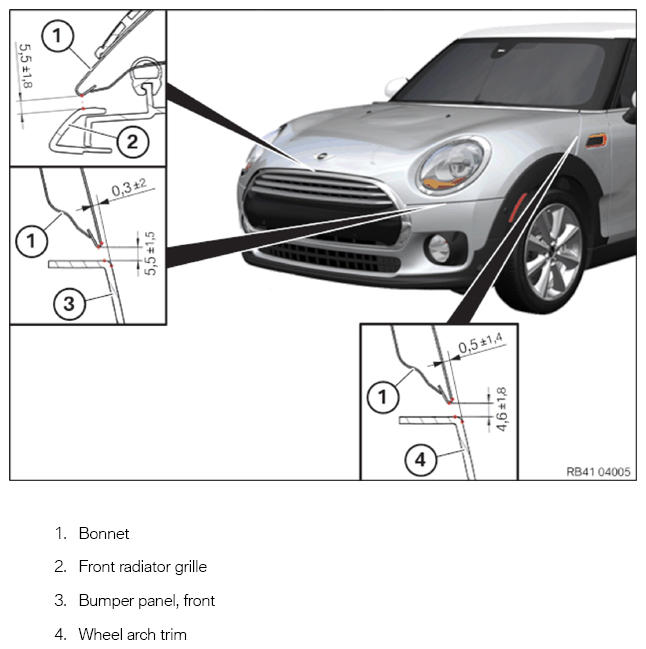

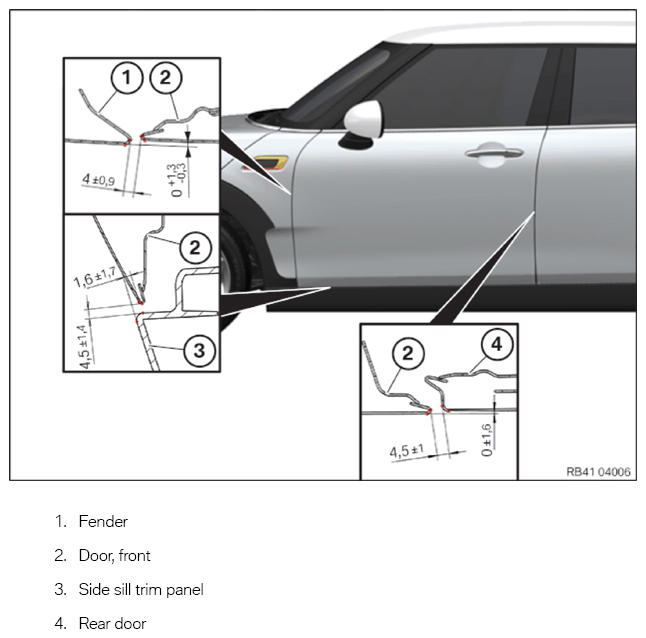

Dimensions in mm

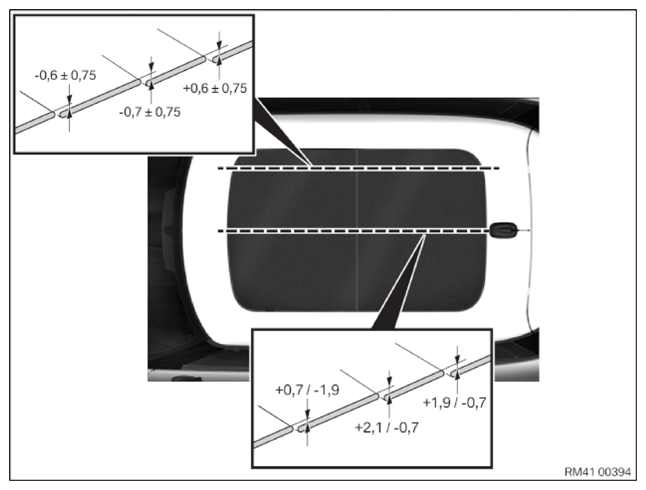

+ dimensions are a glass sunroof protrusion.
- dimensions are a glass sunroof recessed.
