Removing and installing/replacing both multifunction steering wheel switches

Preliminary work needed:

Remove either AIRBAG UNIT or AIRBAG UNIT (SPORTS STEERING WHEEL) .

Disassembly of the steering wheel is not necessary!

Removal:

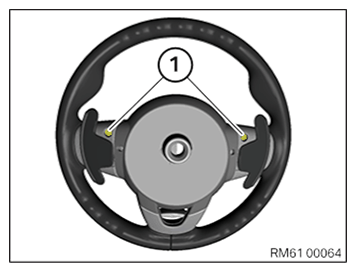

Unscrew bolts (1) on rear of steering wheel.

Courtesy of BMW OF NORTH AMERICA, INC.

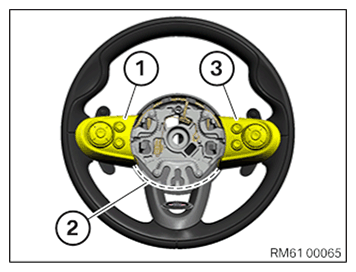

Unclip the left switch (1) and disconnect the associated connector.

Unclip the right switch (3).

Feed out the ribbon cable (2) from the steering wheel and remove the switch (1, 3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

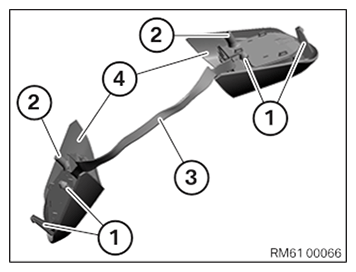

NOTE: Detents (1) on switch of multifunction steering wheel (4) must not be damaged or missing.
Screw points (2) on switch of multifunction steering wheel (4) must not be damaged or missing.
The ribbon cable (3) on the switch of the multifunction steering wheel must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in the ribbon cable (2) into the steering wheel and clip in the right switch (3).

Connect associated connector to left switch (1).

Clip in the left switch (1).

NOTE: Ensure switch (1, 3) is correctly fitted.
Make sure the cable routing of the ribbon cable (2) is correct.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

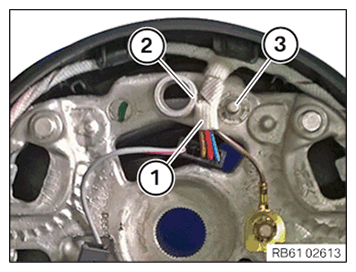

Make sure the cable routing (1) is correct!

The cable (1) must be routed between the ring (2) and the pin (3) as shown.

IMPORTANT: Risk of damage!
The cable (1) must not be in contact with the pin (3)!

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on rear of steering wheel.

Tightening torque 61 31 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install either AIRBAG UNIT or AIRBAG UNIT (SPORTS STEERING WHEEL) .
