Removing and installing front seat, driver's side
Improper handling may trigger the side airbag and as a result cause injuries.
Observe NOTE airbag safety regulations for handling components of airbag system.
Installation note:
- Replace microencapsulated screws
- Screw connection must be completed within 20 min. (start of harden)
- Microencapsulated screws must not be retightened.
- Thread of nut must be cleaned beforehand in event of repeated use
Removal:

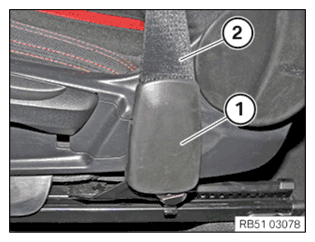

Slide cover (1) on safety belt (2) upwards.
Turn end lining (2) towards rear.

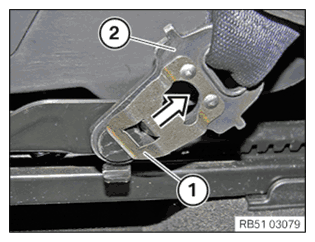

Pull lock washer (1) outwards carefully.
At the same time, feed out end lining (2) towards front.
Remove end lining (2) outwards.
Adjust front seat completely to the rear.
Unscrew the screws (1).
Adjust front seat completely to the front.
Unscrew the screws (1).
Unlock and disconnect the connector (1).
Carefully lift out front seat.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.
Installation:
Installation note:
- Carpet must not get between seat rails and floor panel in area of attachment points (creakings)
- Insert all screws loose to avoid twisting
- Tighten down all screws to specified torque
Tightening torque 52 10 1AZ .
Carefully lift and position front seat in vehicle.
Connect the connector (1).
Tighten down screws (1).
Tightening torque 52 10 1AZ .
Tighten down screws (1).
Tightening torque 52 10 1AZ .
Feed in end lining (2) and engage.

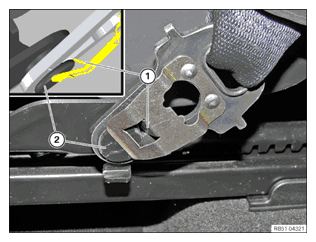

Retaining tab (1) must engage correctly behind the bolt (2).
Attention!
Malfunction if detent is not correct.
Ask a second person to check the detent (two person principle).
Both persons must document that the work has been carried out correctly in the vehicle records.
Fasten seat belt at the seat:
Slide cover (1) on safety belt (2) downwards.
Pull end lining forward, upward and backward.
If the end lining is not correctly engaged, it cannot be turned on the bolt!
