Remove the test gauges for securing the camshafts

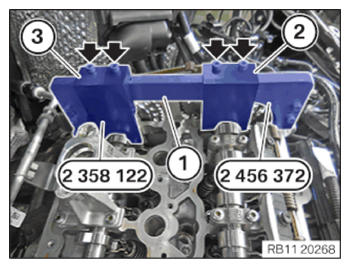

- Remove screws (arrows).
- Feed test gauge (2) from set of special tools 2 358 122 out between intake camshaft and basic carrier (1) of set of special tools 2 456 372 and remove.
- Feed test gauge (3) from set of special tools 2 358 122 out between exhaust camshaft and basic carrier (1) of set of special tools 2 456 372 and remove.
