Remove Cross Connection

Preliminary work

• Refer to REMOVING INTAKE PORT .
• Refer to REMOVING INTAKE SILENCER HOUSING .

• Loosen screws (1)  and (2)  .
• Detach clamps (3)  for hood lock Bowden cable.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lever out the expanding rivet (1)  .
• Loosen screws (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

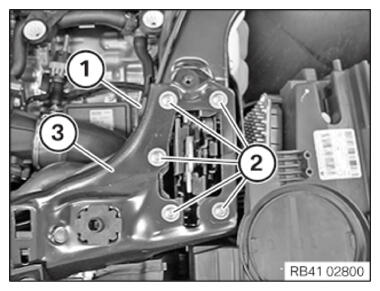

• If necessary, lever out the expanding rivet (1)  .
• Loosen the screws (2)  and remove the cross connection (3)  .
