Replacement: Remounting the belt tensioner

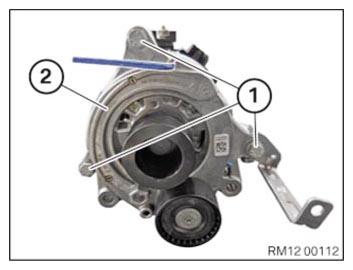

- Loosen screws (1)
.
- Guide out the belt tensioner (2)
at the alternator and remove.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Guide the belt tensioner (2)
in at the alternator and install.
- Tighten the screws (1)
.
TIGHTENING TORQUES SPECIFICATIONS
| Belt tensioner to alternator |
| M8x30 |
Tightening torque |
28 Nm |
Courtesy of BMW OF NORTH AMERICA, INC.
|
