Variable Camshaft Timing Control System -- Repair (F57)
>>
11 36 Variable Valve Timing Control System (VANOS)
>>
11 36 044 Remove and install/replace the exhaust camshaft adjuster (Cooper base)
>>
Install exhaust camshaft adjuster
Install exhaust camshaft adjuster

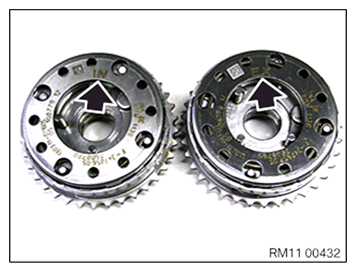

Lay out the exhaust camshaft adjuster marked with EX (arrow).
Courtesy of BMW OF NORTH AMERICA, INC.

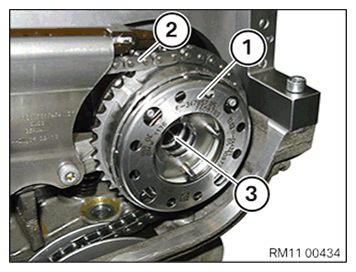

Feed in exhaust camshaft adjuster (1) in the timing chain (2) and position on the exhaust camshaft (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
