Tightening the VANOS central valve of the exhaust camshaft adjuster

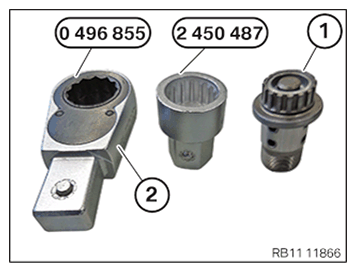

- To tighten VANOS central valve (1), use reversible ratchet (2) from special tool 0 496 855
with special tool 2 450 487
.

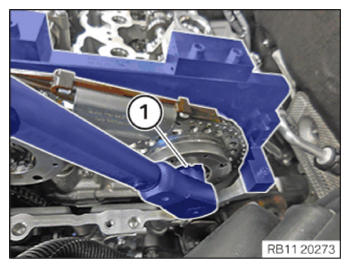

- Tighten VANOS central valve (1) of the exhaust camshaft adjuster.
TIGHTENING TORQUES SPECIFICATIONS
| VANOS central valve to camshaft | ||
|---|---|---|
| M20x1.5 | 1. Joining torque | 10 Nm |
| 2. Joining torque | 30 Nm | |
| 3. Joining torque | 50 Nm | |
| 4. Angle of rotation | 35° | |
