34 33 000 Removing and installing/replacing brake booster (brake booster)

Preliminary work needed :

Removal :

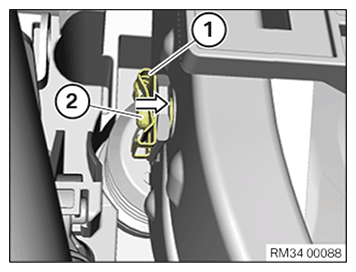

Detach retaining clip (1) from brake pedal, disengage and pull out retaining bolt (2).

Courtesy of BMW OF NORTH AMERICA, INC.

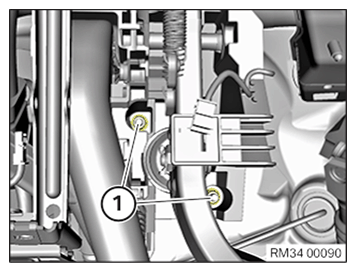

Unscrew nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

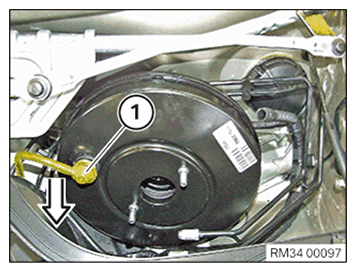

Pull return check valve (1) in arrow direction out of brake booster.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not use any force when removing and installing the brake booster; the brake booster can be damaged under certain circumstances.

Brake lines must not be bent.

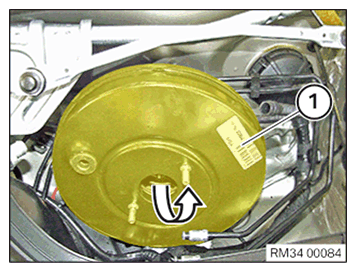

Carefully pull brake booster (1) out of firewall and tilt out in upward direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation :

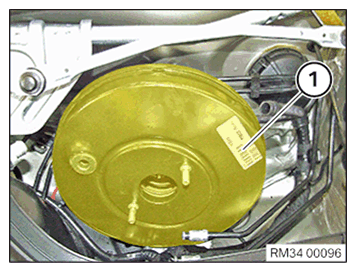

Carefully insert brake booster (1) into firewall.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note :

Replace seal for vacuum line/check valve (1) in brake booster .

Install check valve (1) in arrow direction into brake booster.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert nuts (1) and tighten.

Replace self-locking nuts.

Parts : Self-locking nuts.

Tightening torque 34 33 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

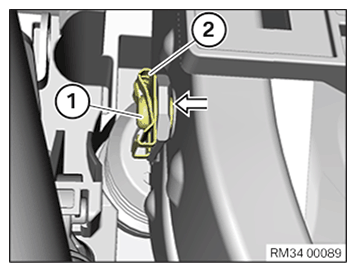

Grease retaining bolt (1) with lubricating grease NBU 12K (part number 83 23 9 407 810 ).

Install retaining bolt (1) through brake pedal.

Mount retaining clip (2) on retaining bolt.

Replace retaining clip (2).

Parts : Retaining clip

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work :
