(Remove left and right wiper arm)
NOTE:
RISK OF DAMAGE
Damage to the wiper console.
If the wiper arm is removed without a special tool, the wiper console can break.
Damage to the wiper console.
If the wiper arm is removed without a special tool, the wiper console can break.
- Only remove the wiper arm with the described special tool.
- Do not lever off the wiper arm, as otherwise the wiper console can break at the predetermined breaking point for active pedestrian protection.
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Pull off protective cap (1).
- Loosen nut (2).

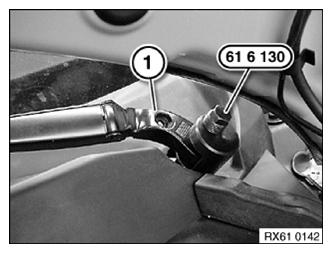

- Detach wiper arm (1) with special tool 0 495 805 (61 6 130) .
