Removing the VANOS central valve of the exhaust camshaft adjuster

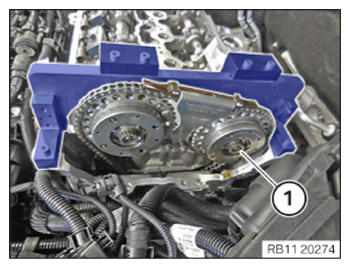

Guide out the VANOS central valve (1) of the exhaust camshaft adjuster and remove.

G15168142

Courtesy of BMW OF NORTH AMERICA, INC.
