Installing the acoustic cover for the engine, front

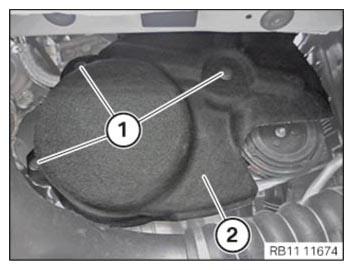

Feed in and install the acoustic cover (2) for the engine at the front.
Position and fasten expanding rivets (1).

G15385618

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE FRONT RIGHT WHEEL ARCH COVER .
Refer to INSTALLING THE FRONT RIGHT WHEEL .
