Installing the vibration damper

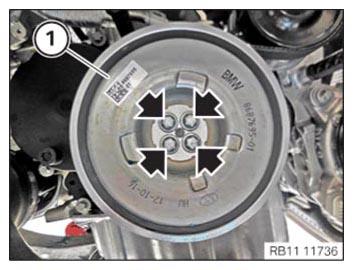

- Feed in vibration damper (1) and install.
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Vibration damper with belt pulley to crankshaft | ||
|---|---|---|
| M10 Replace screws. |
1. Joining torque | 40 Nm |
| 2. Angle of rotation | 120° | |
- Release screws, and feed out and remove special tool 0 493 587 (11 8 180)
.
- Tighten transmission screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Transmission to engine | ||
|---|---|---|
| M8 | Tightening torque | 19 Nm |
- Feed in protective cap (2) and install.
Follow-up work
- Refer to INSTALLING DRIVE BELT .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
- Refer to INSTALLING THE FRONT WHEEL ARCH COVER .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT RIGHT WHEEL .
