Removing the cylinder head cover
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING REAR HOOD SEAL .
- Refer to REMOVING LEFT WINDSHIELD PANEL COVER .
- Refer to REMOVING RIGHT WINDSHIELD PANEL COVER .
- Refer to REMOVING BATTERY COVER .
- Refer to REMOVING THE SECOND FIREWALL AT TOP .
- Refer to REMOVING INTAKE PORT .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING CLEAN AIR PIPE .
- Refer to REMOVING IGNITION COILS .
- Refer to REMOVING FUEL DELIVERY LINE .
- Refer to REMOVING THE HIGH PRESSURE LINE BETWEEN THE RAIL AND THE HIGH PRESSURE PUMP .
- Refer to REMOVING HIGH PRESSURE PUMP .
- Refer to REMOVING BOTH ACTUATORS .
- Refer to REMOVING INJECTORS .
- Refer to REMOVING FRONT RIGHT WHEEL .
- Refer to REMOVING THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to REMOVING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
Bolts of the cylinder head cover
NOTE:
RISK OF DAMAGE
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
- Unlock and loosen connector (1) .
- Loosen clamp (2) .
- Guide out wiring harness section (3)
for the engine and set aside.
- Unlock and release the connector (1)
at the exhaust camshaft sensor (2)
.
- Detach wiring harness section (1) for the injectors and ignition coils from the cylinder head cover (2) .
- Guide out the wiring harness section (1)
for the injectors and ignition coils and set aside.
- Loosen screw (1) .
- Guide out wiring harness section (2)
for the engine and set aside.

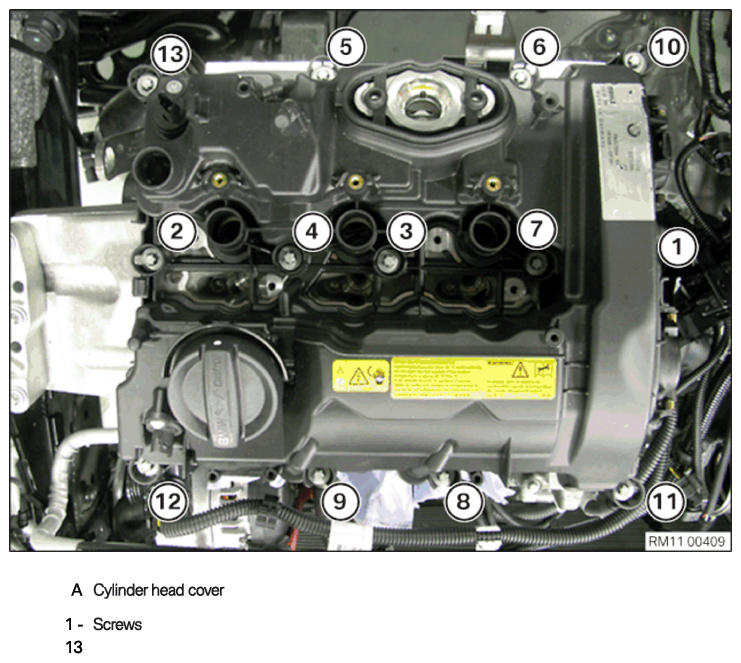

- Release all screws evenly in the sequence (13) to (1) .
- Feed out and remove the cylinder head cover.
