Installing the rear bulkhead
Installing the rear bulkhead

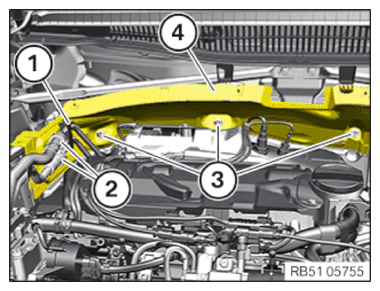

Guide in and install the rear bulkhead (4).
Tighten down screws (3).
TIGHTENING TORQUE SPECIFICATIONS
Rear bulkhead to cowl lower part
Oval-head screw
Tightening torque
5Nm
Guide and install fuel lines (2) into holders (1).
Connect the holder (1) and lock.
The holder (1) must engage audibly.
Courtesy of BMW OF NORTH AMERICA, INC.
