Inline plugs, 3-, 6-pin, System Elo-Power 2.8 (Countryman 2017-2023, except PHEV)

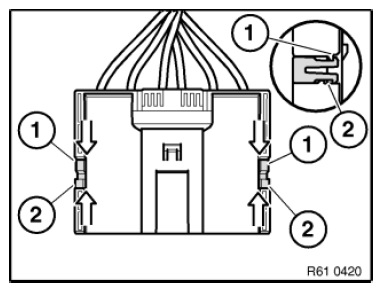

Press locking hooks (1) in arrow direction and disengage. Then unlock locking hooks (2) and remove locking mechanism.

G08509677Courtesy of BMW OF NORTH AMERICA, INC.

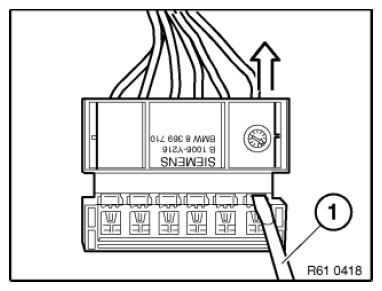

Press down safety catch with screwdriver (1) and pull out cable with contact towards rear.

G08509678Courtesy of BMW OF NORTH AMERICA, INC.
