84 10 012 Removing and installing/replacing battery of telematics control module (Countryman 2017-2023, except PHEV)

Preliminary work needed:

• REMOVE TELEMATICS CONTROL MODULE .

Removal:

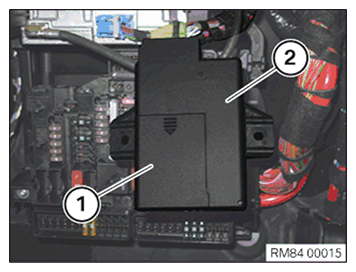

Open lid (1) on telematics control module (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug.

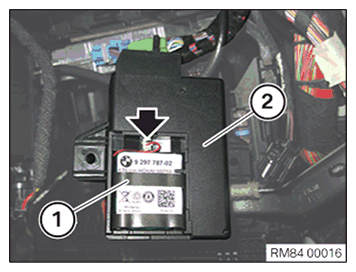

Remove rechargeable battery (1) from telematics control module (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector.

Insert battery (1) into telematics control module (2) and connect plug.

Courtesy of BMW OF NORTH AMERICA, INC.

Position and close lid (1) on telematics control module (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• INSTALL TELEMATICS CONTROL MODULE .
