Removing and installing/replacing top cover on tail panel

Preliminary work needed:

• Remove luggage compartment FLOOR COVERING

Removal:

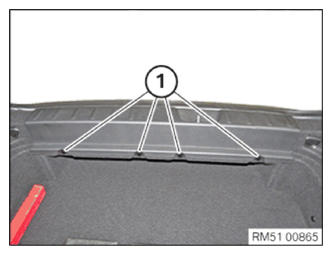

Release expanding rivet (1).

Guide out trim (2) upwards and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in cover (2).

Make sure that it is seated correctly on edge protection.

Mount expanding rivets (1).

Replace faulty expander rivets.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install luggage compartment FLOOR COVERING
