(Installing the front underbody protection with the stiffening plate)

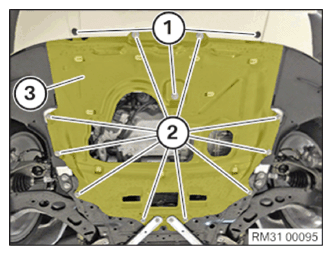

- Position stiffening plate (3).
- Replace screws (2).
Parts: Screws
- Tighten down screws (2).(TIGHTENING TORQUE SPECIFICATIONS)
Thrust field to front axle M12
Replace screws.Joining torque 56 Nm Angle of rotation 90° - Tighten down screws (1).(TIGHTENING TORQUE SPECIFICATIONS)

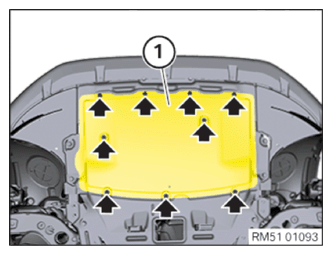

Thrust field to bumper cover/support Tightening torque 3 Nm - Position the front underbody protection (1) correctly.
- Tighten screws (arrows).(TIGHTENING TORQUE SPECIFICATIONS)
Underbody protection to body Screw Tightening torque 2.5 Nm
