Install chain tensioner
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Use a suitable tool to tighten the chain tensioner.
NOTE:

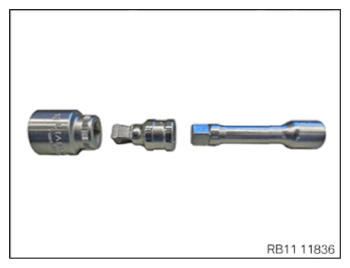

Tighten chain tensioner using the illustrated tool.
- Drain the oil chamber in the chain tensioner when reusing the chain tensioner.
- Place the chain tensioner on a level support, slowly compress in the arrow direction and relieve it.
- Catch and dispose of emerging engine oil.
- Repeat the procedure 2x.
- Replace the sealing sleeve (1).
Parts: Sealing sleeve

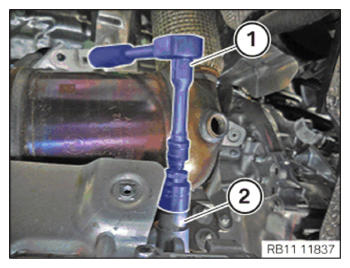

- Guide in and install the sealing sleeve (1) on the chain tensioner (2).

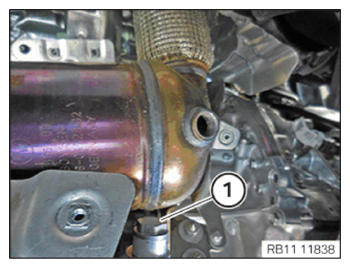

- Guide in and install the chain tensioner (1).
- Tighten the chain tensioner (1) with standard tools.
TIGHTENING TORQUES SPECIFICATIONS
| Chain tensioner to cylinder head | ||
|---|---|---|
| Chain tensioner | Joining torque | 20 Nm |
| Angle of rotation | 40° | |
Follow-up work
- Refer to INSTALLING THE HEAT SHIELD ON THE EXHAUST TURBOCHARGER, TOP .
- Refer to INSTALLING THE OXYGEN SENSOR MONITOR .
- Refer to INSTALLING LAMBDA OXYGEN SENSOR .
- Refer to INSTALLING CLEAN AIR PIPE .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING SECOND UPPER FIREWALL .
- Refer to INSTALLING THE RIGHT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE BATTERY COVER .
- Refer to INSTALLING THE LEFT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
