Install fan cowl with electric fan
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.
Remove guard for the cooler fins
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

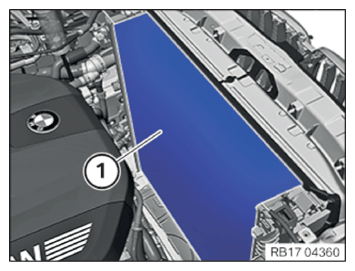

- Remove guard (1) .

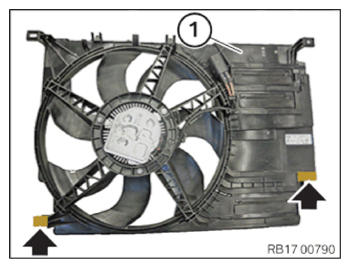

- Maneuver the guides (arrows) of the fan cowl (1)
into the charge air cooler.
- Maneuver the fan cowl (1)
in the arrow direction and install it.
- Lock the left and right locks (arrows).
- Tighten down screws (1)
.TIGHTENING TORQUES SPECIFICATIONS
Fan cowl on radiator M6X12 Tightening torque 8 Nm - Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Secure clamps (2) .
- Thread in and install coolant line (3)
.
- Guide the seal (1) in and install it.
Follow-up work
- Refer to INSTALLING CROSS CONNECTION .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING INTAKE PORT .
