Installing the ignition coils

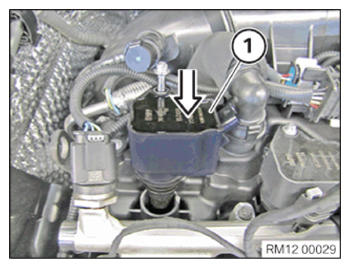

- Feed in and install the ignition coil (1) in the direction of the arrow.
- Tighten screw (2) on ignition coil (3).
TIGHTENING TORQUE SPECIFICATIONS
| Ignition coil to cylinder head cover | ||
|---|---|---|
| Screw M6 | Tightening torque | 8 Nm |
- Connect and lock the connector (1).
- Make sure the connector (1) engages audibly.

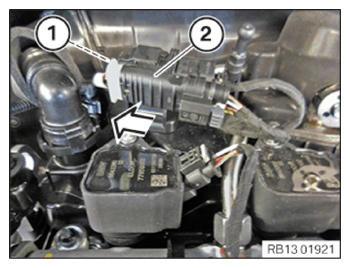

- Feed in and install the connector (2) in the direction of the arrow.
- Ensure that the lock (1) engages audibly.
