Remove the second firewall at top
Remove the second firewall at top
Loosen screw (1).
Set the wiring harness (2) with the cover panel aside.
Courtesy of BMW OF NORTH AMERICA, INC.
Unclip the fuel line (1).
Loosen screws (2).
Remove the firewall upper part (3) upwards.
Courtesy of BMW OF NORTH AMERICA, INC.

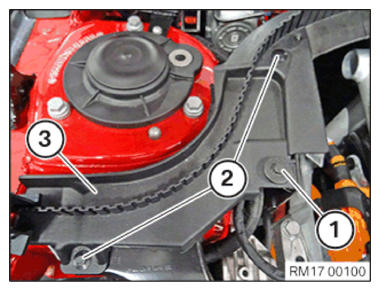

Loosen screw (1).
Loosen the rivets (2).
Remove the cover (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).
Remove the firewall upper part (2) upwards.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
