Install clean air pipe

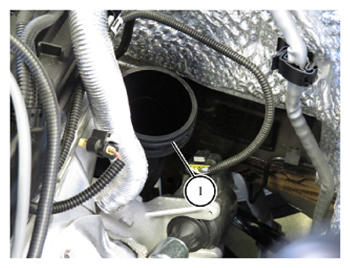

• Replace sealing ring (1).

  Parts:  Sealing ring

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and position clean air pipe.
• Connect and lock the connector (4).

  The connector (4) must engage audibly.

• Connect engine ventilation line (1) on clean air pipe and lock.
• Connect engine ventilation line (2) to the cylinder head cover and lock.

  The engine ventilation lines (1) and (2) must snap-in audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in clean air pipe (2) on the intake filter housing (3) and install.
• Tighten clamp (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Clean air pipe to intake silencer housing
  Screw clamp	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING SECOND UPPER BULKHEAD .
• Refer to INSTALLING THE RIGHT WINDSHIELD PANEL COVER .
• Refer to INSTALLING THE BATTERY COVER .
• Refer to INSTALLING THE LEFT WINDSHIELD PANEL COVER .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
