Remove front controller
WARNING:
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
NOTE:
TECHNICAL INFORMATION
With the ignition off and the high-voltage safety plug disconnected, the Check Control message "High voltage system faulty" is displayed by default.
The message "High-voltage system switched off" (absence of voltage) is only displayed when the ignition is switched on.
With the ignition off and the high-voltage safety plug disconnected, the Check Control message "High voltage system faulty" is displayed by default.
The message "High-voltage system switched off" (absence of voltage) is only displayed when the ignition is switched on.
Preliminary work
- Refer to RELEASING THE COVER OF THE HIGH-VOLTAGE SAFETY PLUG .
- Refer to DE-ENERGIZING THE HIGH-VOLTAGE SYSTEM .
- Refer to CHECKING THAT NO VOLTAGE IS APPLIED .
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to REMOVING THE CENTER CONSOLE TRIM .

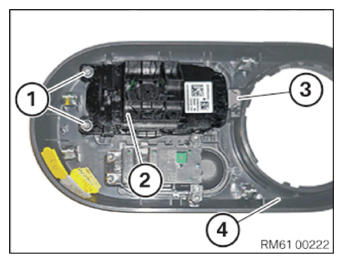

- Loosen screws (1) .
- Remove front controller (2) from the clamp (3) and remove from center console trim (4) .
