61 35 360 Removing and installing control unit for camera-based driver support systems (KAFAS) (Cooper 4-door hatchback and 2-door hatchback, 2020-2023)

Attention!

Read and comply with notes on protection AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Preliminary work needed:

• CLAMP OFF BATTERY LEAD FROM NEGATIVE CONNECTION POINT .
• Remove RIGHT GLOVE COMPARTMENT .

Removal:

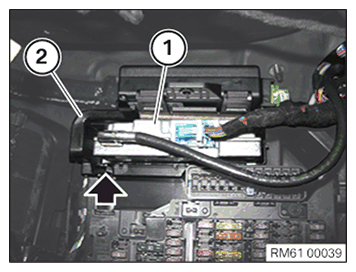

Release detent on equipment holder.

Feed out KAFAS control unit (1) from equipment holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

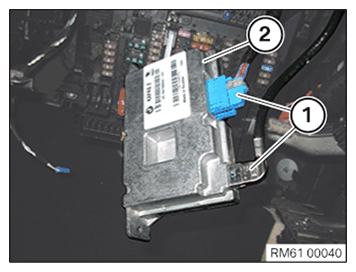

Unlock connector (1) on KAFAS control unit (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector (1) to KAFAS control unit (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Join KAFAS control unit (1) in equipment holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install RIGHT GLOVE COMPARTMENT .
• Connect BATTERY CABLE NEGATIVE TERMINAL .
