65 50 200 Removing and installing (replacing) central instrument - V.1 (Countryman 2017-2023, except PHEV)

Special tools required:

• 00 9 327

Preliminary work needed:

• Remove DASHBOARD COVER .

Removal:

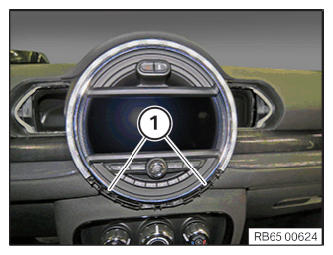

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip and remove the cover (1) upwards using special tool 00 9 327.

Courtesy of BMW OF NORTH AMERICA, INC.

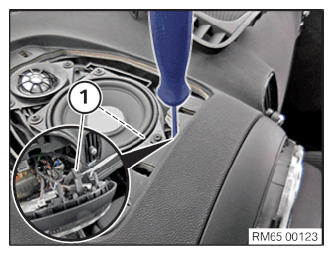

Push the lock (1) downward using a screwdriver and at the same time pull the central instrument towards the vehicle interior.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Remove central instrument (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• Remount the SWITCH FOR THE HAZARD WARNING LIGHTS SYSTEM .
• Remount the AUDIO CONTROL PANEL .
• Remount the CENTRAL INFORMATION DISPLAY (CID) .

Installation:

Connect and lock the plug connections (1) on the central instrument (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install the central instrument into the dashboard and engage at the top.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Correctly position and engage the trim (1) in the dashboard.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install DASHBOARD COVER .
