65 13 050 Removing and installing/replacing loudspeaker (tweeter in mirror triangle) - V.1 (Countryman 2017-2023, except PHEV)

Preliminary work needed:

• Remove FRONT DOOR TRIM PANEL ON LEFT OR RIGHT .

Removal:

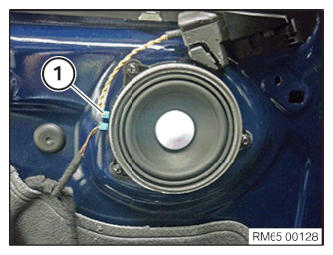

Disconnect plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

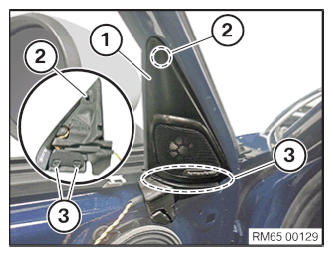

Detach the trim (1) from the clip (2) and remove from the guides (3) towards the top.

Courtesy of BMW OF NORTH AMERICA, INC.

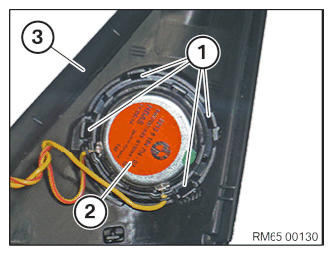

Unlock detents (1).

Remove the tweeter (2) from the trim (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Properly position the tweeter (2) and engage it in the trim (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Install the trim (1) in the guides (3) and lock on the clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Connect plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install the FRONT DOOR TRIM PANEL ON LEFT OR RIGHT .
