64 22 115 Removing and installing or replacing left fresh air grille (Countryman 2017-2023, except PHEV)

Special tools required:

• 2 298 505 .

Removal:

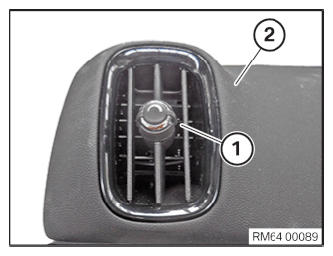

Carefully lever out the fresh air grille (1) from the dashboard (2) using the panel wedge 2 298 505 and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

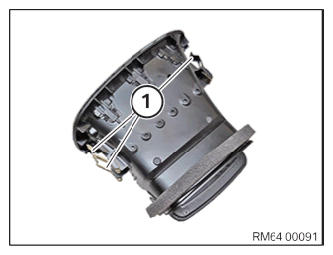

Retaining clips (1) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully insert and engage the fresh air grille (1) in the recess of the dashboard.

Courtesy of BMW OF NORTH AMERICA, INC.
