Install the upper bulkhead cover panel
Install the upper bulkhead cover panel

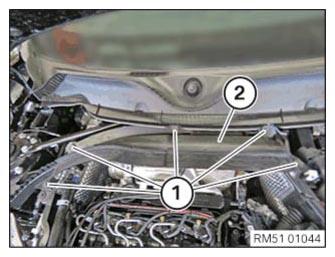

Guide in and Install the upper bulkhead cover panel (2).
Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
Cowl cover, top
screw
Tightening torque
2.6Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and install cover (2).
Tighten down screw (1).
Courtesy of BMW OF NORTH AMERICA, INC.
