Checking the setting of the panorama glass roof

• The distance of the lids to the roof at the front and rear must be identical.

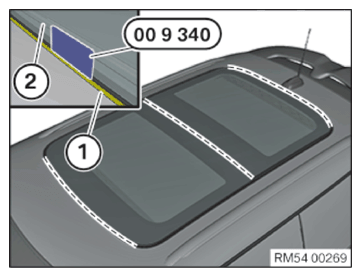

• Insert special tool 0 493 687 (00 9 340) between gasket (1) and lid (2).
• The special tool must allow insertion with the same amount of resistance.

  Courtesy of BMW OF NORTH AMERICA, INC.

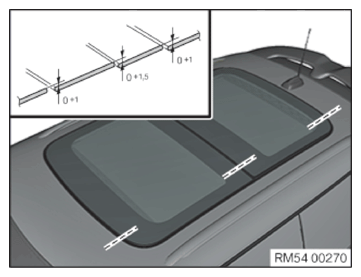

• The front cover must be flush to 1 mm deeper that the front roof outer skin.
• The front cover must be flush to 1.5 mm higher than the rear cover.
• The rear cover must be flush to 1 mm higher than the roof outer skin.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Measure the height of the glass slide/tilt sunroof panel (1) to the roof (2) with the special tool 0 495 259 (51 0 010).

Courtesy of BMW OF NORTH AMERICA, INC.
