Tightening the oil drain plug

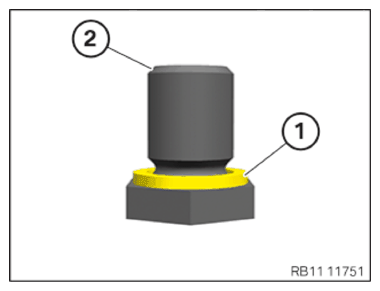

- Replace the sealing ring (1)
at the oil drain plug (2)
.
Parts: Sealing ring
- Insert and install sealing ring (1)
at oil drain plug (2)
.
- Replace the sealing ring.
Parts: Sealing ring

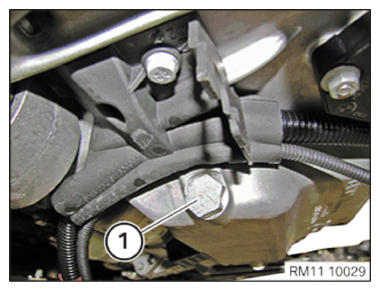

- Position oil drain plug (1)
on the oil sump and tighten.TIGHTENING TORQUE SPECIFICATIONS
Oil drain plug M12x16 Replace the sealing ring. 25Nm
