Securing the anti-roll bar on the left and right on the anti-roll bar link

Fastening the anti-roll bar on the anti-roll bar link

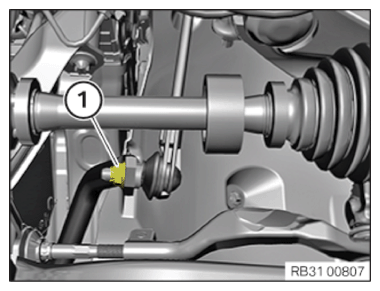

• Position the anti-roll bar link on the anti-roll bar.
• Replace nut (1)  .

  Parts:  Nut

• Tighten nut (1)  .
  NOTE: Counter-hold at the Torx socket.
  TIGHTENING TORQUE SPECIFICATIONS



  Anti-roll bar link to anti-roll bar
  M10 Replace nut.	Tightening torque	56Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
