Removing the front right wheel arch cover
NOTE:
Description is for left component only. Procedure on the right side is identical.

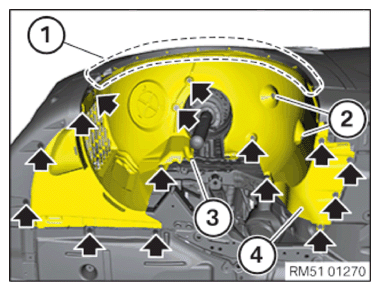

Remove front wheel arch cover
- Open the expanding rivets in area (1)
.
- Loosen nuts (2)
.
- Remove screws (arrows).
- Detach the clip (3)
and feed out the wheel arch cover (4)
.
Courtesy of BMW OF NORTH AMERICA, INC.
|
