Remove the front left and right wheel arch cover
NOTE:
Perform the steps on the right and left side.

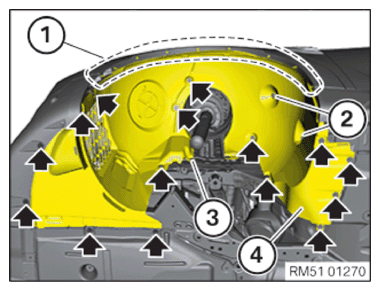

Remove front wheel arch cover
- Open the expanding rivets in area (1)
.
- Loosen nuts (2)
.
- Remove screws (arrows).
- Detach the clip (3)
and feed out the wheel arch cover (4)
.
Courtesy of BMW OF NORTH AMERICA, INC.
|
