Installing the front right wheel
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
Mounting the wheel
Clean the contact surfaces between the brake disc and the wheel rim
NOTE:
TECHNICAL INFORMATION
The contact surface between the brake disc and the wheel rim must be clean and free from oil and grease. There is otherwise a risk of the wheel becoming loose at a later time.
The contact surface between the brake disc and the wheel rim must be clean and free from oil and grease. There is otherwise a risk of the wheel becoming loose at a later time.

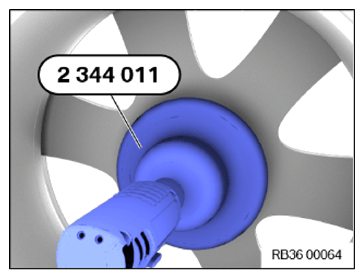

- Remove dirt, grease residues and corrosion from the contact surface with a drill and the special tool 2 344 011.
Do not operate special tool 2 344 011 with an impact screwdriver.
- Degrease contact surfaces.CONSUMABLE SPECIFICATION
Universal cleaner 20 I, Canister 83192360981 - If there are grease deposits in the area of the wheel bolt holes, remove and clean the brake disc.
- Remove dirt, grease residues and corrosion from the contact surface with a drill and the special tool 2 344 011.
Do not operate special tool 2 344 011 with an impact screwdriver.
- Degrease contact surfaces.CONSUMABLE SPECIFICATION
Universal cleaner 20 I, Canister 83192360981 - Check that the mounting bolt (1)
for the brake disc is securely seated.

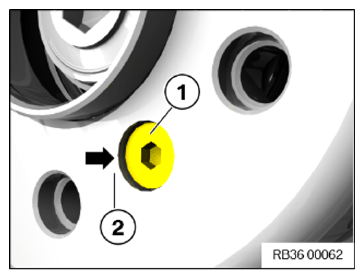

Die mounting bolt (1) for the brake disc may not on the contact surface (2) between the brake disc and the wheel rim.

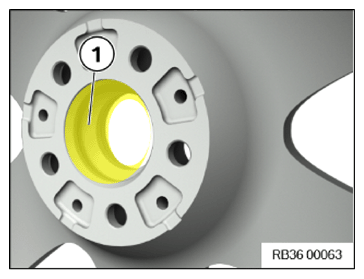

TIGHTENING TORQUE SPECIFICATIONSBrake disc to front wheel hub M8 tightening torque 16Nm TIGHTENING TORQUE SPECIFICATIONSBrake disc to rear wheel hub M8 tightening torque 16Nm - Thinly grease the wheel centering (1)
in the wheel rim.CONSUMABLE SPECIFICATION
Brake block paste
* TU = Trade Unit. TU3g, Bag 83192158851 numbers cannot be ordered! For invoicing purposes only. 100 g, Tube 83192158852 5g, TU* 83230140233 - Coat the wheel hubs at the front and rear In area (1)

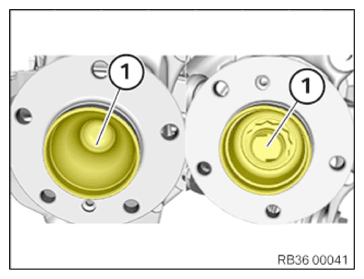

with a thin layer of grease to protect them from corrosion.CONSUMABLE SPECIFICATION
Brake block paste
* TU = Trade Unit. TU3g, Bag 83192158851 numbers cannot be ordered! For Invoicing purposes only. 100 g, Tube 83192158852 5g, TU* 83230140233 Check
- Check lug bolts for wear.
Result

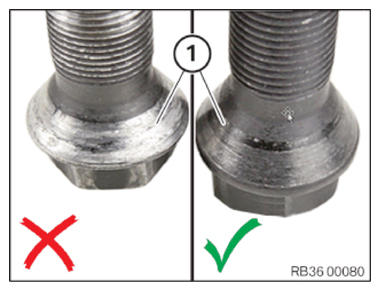

» Spots (> 30%) of the bearing surface (1) of the taper on the screw head show silvery wear.
Measure
- Replace lug bolts.
NOTE: TECHNICAL INFORMATION
Never use an impact screwdriver or electric screwdriver to apply and tighten the lug bolts.
The rim must rest evenly against the brake disc.
In the case of non-original BMW lug bolts/wheel rims, it may be necessary to retighten the lug bolts on user account of setting properties (refer to the documentation from the manufacturer).
Do not apply oil to new lug bolts. - Clean the lug bolts (arrows).
- Check the lug bolts (arrows) and threads for damage, replace lug bolts If necessary.
- Replace the corroded lug bolts (arrows).

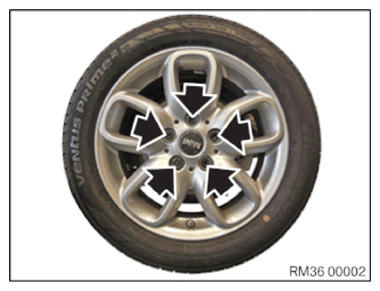

- Screw In the lug bolts (arrows) crosswise by hand and hand-tighten to center the rim.
- Use the torque wrench to tighten the lug bolts (arrow) crosswise.
- Retighten all lug bolts (arrow) crosswise to check.TIGHTENING TORQUE SPECIFICATIONS
Lug bolts M14/SW17 Screw in wheel bolts and evenly tighten crosswise by hand in order to center the wheel rim.
Tighten lug bolts to the prescribed tightening torque with a calibrated torque wrench in a crosswise sequence.
Check all the lug bolts in the same order or retighten to the prescribed tightening torque again.tightening torque 140Nm Check 140Nm
Mounting the wheel
Clean the contact surfaces between the brake disc and the wheel rim
NOTE:
TECHNICAL INFORMATION
The contact surface between the brake disc and the wheel rim must be clean and free from oil and grease. There is otherwise a risk of the wheel becoming loose at a later time.
The contact surface between the brake disc and the wheel rim must be clean and free from oil and grease. There is otherwise a risk of the wheel becoming loose at a later time.

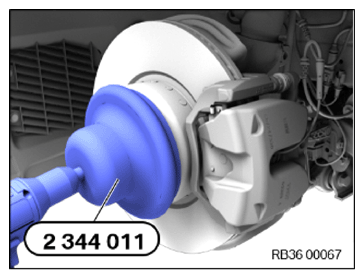

- Remove dirt, grease residues and corrosion from the contact surface with a drill and the special tool 2 344 011.
Do not operate special tool 2 344 011 with an impact screwdriver.
- Degrease contact surfaces.CONSUMABLE SPECIFICATION
Universal cleaner 20 I, Canister 83192360981 - If there are grease deposits in the area of the wheel bolt holes, remove and clean the brake disc.
- Remove dirt, grease residues and corrosion from the contact surface with a drill and the special tool 2 344 011.
Do not operate special tool 2 344 011 with an impact screwdriver.
- Degrease contact surfaces.CONSUMABLE SPECIFICATION
Universal cleaner 201, Canister 83192360981 - Check that the mounting bolt (1)
for the brake disc is securely seated.
Die mounting bolt (1) for the brake disc may not on the contact surface (2) between the brake disc and the wheel rim.
TIGHTENING TORQUE SPECIFICATIONSBrake disc to front wheel hub M8 tightening torque 16Nm TIGHTENING TORQUE SPECIFICATIONSBrake disc to rear wheel hub M8 tightening torque 16Nm - Thinly grease the wheel centering (1)
in the wheel rim.CONSUMABLE SPECIFICATION
Brake block paste
* TU = Trade Unit. TU3g, Bag 83192158851 numbers cannot be ordered! For invoicing purposes only. 100 g, Tube 83192158852 5g, TU* 83230140233 - Coat the wheel hubs at the front and rear in area (1) with a thin layer of grease to protect them from corrosion.CONSUMABLE SPECIFICATION
Brake block paste
*TU = Trade Unit. TU3g, Bag 83192158851 numbers cannot be ordered! For invoicing purposes only. 100 g, Tube 83192158852 5g, TU* 83230140233 Check
- Check lug bolts for wear.
Result
» Spots (> 30%) of the bearing surface (1) of the taper on the screw head show silvery wear.
Measure
- Replace lug bolts.
NOTE: TECHNICAL INFORMATION
Never use an impact screwdriver or electric screwdriver to apply and tighten the lug bolts.
The rim must rest evenly against the brake disc.
In the case of non-original BMW lug bolts/wheel rims, it may be necessary to retighten the lug bolts on user account of setting properties (refer to the documentation from the manufacturer).
Do not apply oil to new lug bolts. - Clean the lug bolts (arrows).
- Check the lug bolts (arrows) and threads for damage, replace lug bolts If necessary.
- Replace the corroded lug bolts (arrows).
- Screw In the lug bolts (arrows) crosswise by hand and hand-tighten to center the rim.
- Use the torque wrench to tighten the lug bolts (arrow) crosswise.
- Retighten all lug bolts (arrow) crosswise to check.TIGHTENING TORQUE SPECIFICATIONS
Lug bolts M14/SW17 Screw in wheel bolts and evenly tighten crosswise by hand in order to center the wheel rim.
Tighten lug bolts to the prescribed tightening torque with a calibrated torque wrench in a crosswise sequence.
Check all the lug bolts in the same order or retighten to the prescribed tightening torque again.1 tightening torque 140Nm Check 140Nm
