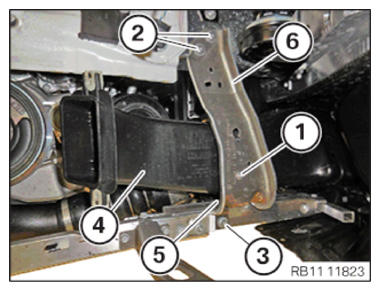

If installed: Removing the right brake ventilation duct

Release screws (1) , (2) and (3) .
Feed out brake ventilation duct (4) and set it aside.
Loosen screw (5) .
Guide out brake air duct (4) with the brace (6) and remove.
