Disconnect plug connections from steering gear
Disconnect plug connections from steering gear

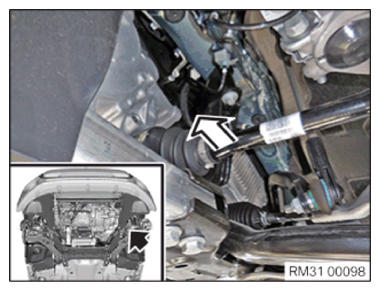

You can reach the subsequent plug connections with your right arm through the left output shaft.
Courtesy of BMW OF NORTH AMERICA, INC.

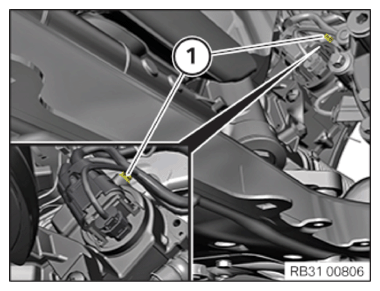

Detach wiring harness
(1)
from steering gear.
Courtesy of BMW OF NORTH AMERICA, INC.

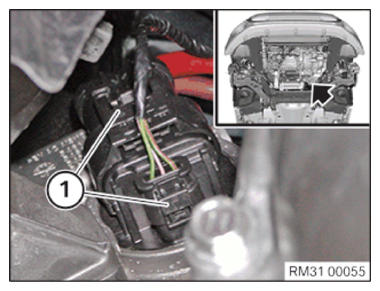

Unlock plug connections
(1)
and disconnect from steering gear.
NOTE:
Make sure when lowering the front axle that the cables are not damaged!
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
