Remove tank vent valve
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .
- Version: A
Unlock plug connection (1) and disconnect.
Unlock and detach the tank vent line (2).
Unlock and disconnect the tank vent line (3) from the throttle body.
Detach the tank vent valve (4) from the holder and remove it.
- Version: B

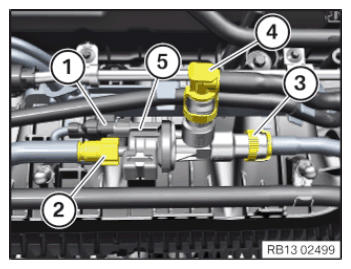

Unlock plug connection (1) and disconnect.
Unlock and detach the tank vent line (2).
Unlock and disconnect the tank vent line (3) from the throttle body.
Detach the tank vent valve (4) from the holder and remove it.
Detach the tank vent valve (5) from the holder and remove it.
